The pc817 is a High Density Mounting Type Photocoupler.
Parametrics
pc817 absolute maximum ratings: (1)Forward current: 50 mA; (2)*1Peak forward current: 1 A; (3)Reverse voltage: 6 V; (4)Power dissipation: 70 mW; (5)Collector-emitter voltage: 35 V; (6)Emitter-collector voltage: 6 V; (7)Collector current: 50 mA; (8)Collector power dissipation: 150 mW; (9)Total power dissipation: 200 mW; (10)*2Isolation voltage: 5000 Vrms; (11)Operating temperature: - 30 to + 100 ℃; (12)Storage temperature: - 55 to + 125 ℃; (13)*3Soldering temperature: 260 ℃.
Features
pc817 features: (1)Current transfer ratio ( CTR: MIN. 50% at I F = 5mA ,VCE=5V); (2)High isolation voltage between input and output; (3)Compact dual-in-line package: 1-channel type; (4)Recognized by UL, file No. E64380.

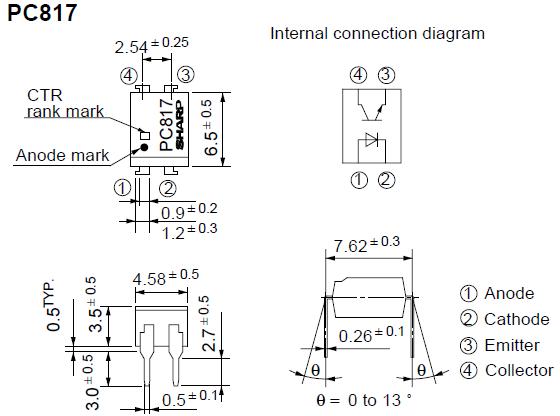

Diagrams
