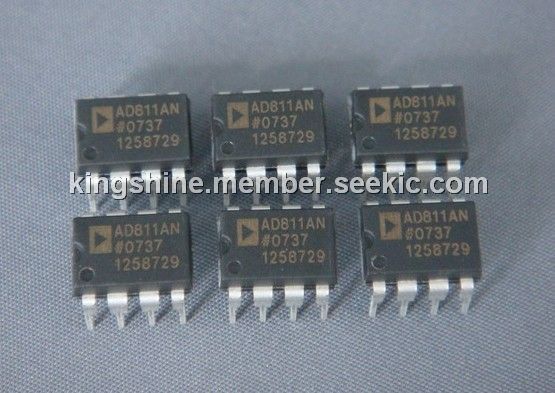

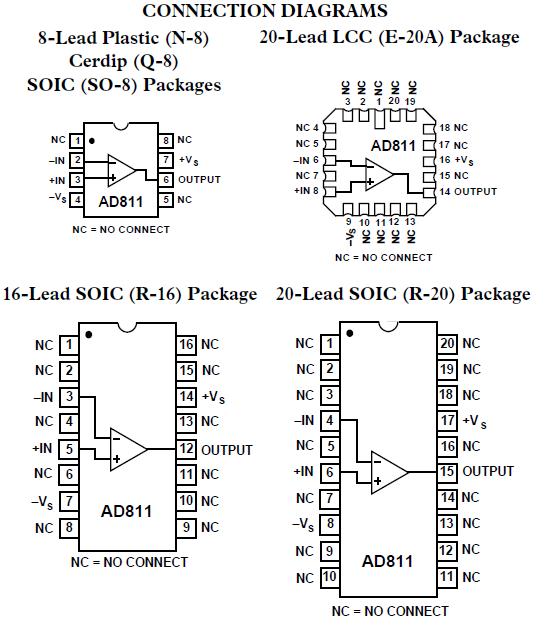

ad811

operational amplifier, DIP8, –3 dB

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.55~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.55~2.00

PartNumber:: ad811

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 10+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Joe's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-06-15

From Other Seller

Part Number:ad811
US $1.55 - 2.00
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
2DI75D-050A

US $16.00 - 30.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The ad811 is a wideband current-feedback operational amplifier, optimized for broadcast quality video systems. The –3 dB bandwidth of 120 MHz at a gain of +2 and differential gain and phase of 0.01% and 0.01° (RL = 150 W) make the AD811 an excellent choice for all video systems. The ad811 is designed to meet a stringent 0.1 dB gain flatness specification to a bandwidth of 35 MHz (G = +2) in addition to the low differential gain and phase errors.

Parametrics

ad811 absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Internal Power Dissipation: Observe Derating Curves; (3)Output Short Circuit Duration: Observe Derating Curves; (4)Common-Mode Input Voltage: ±VS; (5)Differential Input Voltage: ±6 V; (6)Storage Temperature Range (Q, E): –65℃ to +150℃; (7)Storage Temperature Range (N, R): –65℃ to +125℃; (8)Operating Temperature Range: 0℃ to +70℃; (9)Lead Temperature Range (Soldering 60 sec): +300℃.

Features

ad811 features: (1)High Speed: 140 MHz Bandwidth (3 dB, G = +1), 120 MHz Bandwidth (3 dB, G = +2), 35 MHz Bandwidth (0.1 dB, G = +2), 2500 V/ms Slew Rate, 25 ns Settling Time to 0.1% (For a 2 V Step), 65 ns Settling Time to 0.01% (For a 10 V Step); (2)Excellent Video Performance (RL =150 Ω): 0.01% Differential Gain, 0.018 Differential Phase; (3)Low Distortion: THD = -74 dB @ 10 MHz; (4)Excellent DC Precision: 3 mV max Input Offset Voltage; (5)Flexible Operation: Specified for ±5 V and ±15 V Operation, ±2.3 V Output Swing into a 75 Ω Load (VS = ±5 V).
