Product Summary

The ad623 is an integrated single supply instrumentation amplifier that delivers rail-to-rail output swing on a single supply (+3 V to +12 V supplies). The ad623 offers superior user flexibility by allowing single gain set resistor programming, and conforming to the 8-lead industry standard pinout configuration.

Parametrics

ad623 absolute maximum ratings: (1)Supply Voltage: ±6 V; (2)Internal Power Dissipation: 650 mW; (3)Differential Input Voltage: ±6 V; (4)Output Short Circuit Duration: Indefinite; (5)Storage Temperature Range (N, R, RM): –65℃ to +125℃; (6)Operating Temperature Range (A): –40℃ to +85℃.

Features

ad623 features: (1)Easy to Use; (2)Higher Performance than Discrete Design; (3)Single and Dual Supply Operation; (4)Rail-to-Rail Output Swing; (5)Input Voltage Range Extends 150 mV Below Ground (Single Supply); (6)Low Power, 575 μA Max Supply Current; (7)Gain Set with One External Resistor, Gain Range 1 (No Resistor) to 1,000.

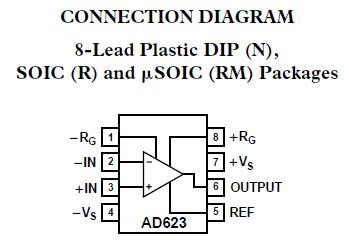

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
AD623
AD623
Other

Data Sheet
Negotiable
AD623AN
AD623AN
Analog Devices Inc
IC INSTR AMP R-R OUT 8-DIP
Data Sheet
1-100: $1.78
AD623ARM
AD623ARM
Analog Devices Inc
IC INSTR AMP R-R OUT 8-MSOP
Data Sheet
1-100: $1.52
AD623ARM-REEL
AD623ARM-REEL
Analog Devices Inc
IC INSTRUMENT AMP R-R 5V 8-MSOP
Data Sheet
1-3000: $1.37
AD623ARM-REEL7
AD623ARM-REEL7
Analog Devices Inc
IC INSTRUMENT AMP R-R 5V 8-MSOP
Data Sheet
1-1000: $1.38
AD623ARMZ
AD623ARMZ

IC AMP INST R-R LP 8MSOP
Data Sheet
0-1: $2.32
1-10: $2.07
10-25: $1.86
25-100: $1.69
100-250: $1.53
250-500: $1.37
500-1000: $1.16
1000-2500: $1.10
AD623ARMZ-REEL
AD623ARMZ-REEL

IC AMP INST R-R LP 8MSOP
Data Sheet
0-3000: $1.10
AD623AR-REEL7
AD623AR-REEL7

IC AMP INST R-R LP 8SOIC
Data Sheet
0-1000: $1.32
