Product Summary

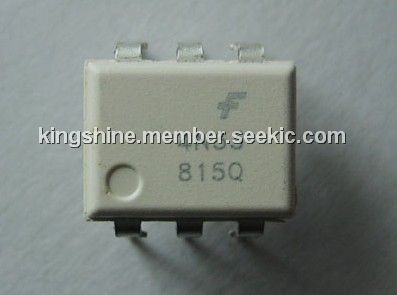

The 4n33 is a general purpose 6-PIN phototransistor optocoupler. The 4n33 has a gallium arsenide infrared emitter optically coupled to a silicon planar photodarlington.

Parametrics

4n33 absolute maximum ratings: (1)Storage Temperature:-55℃ to +150℃; (2)Operating Temperature:-55℃ to +100℃; (3)Lead Solder Temperature:260℃ for 10 sec; (4)Continuous Forward Current:80 mA; (5)Reverse Voltage:3 V; (6)Forward Current – Peak (300μs, 2% Duty Cycle):3.0 A; (7)Collector-Emitter Breakdown Voltage:30 V; (8)Collector-Base Breakdown Voltage:30 V; (9)Emitter-Collector Breakdown Voltage:5 V.

Features

4n33 features: (1)High sensitivity to low input drive current; (2)Meets or exceeds all JEDEC Registered Specifications; (3)VDE 0884 approval available as a test option:add option .300.(e.g., 4N29.300).

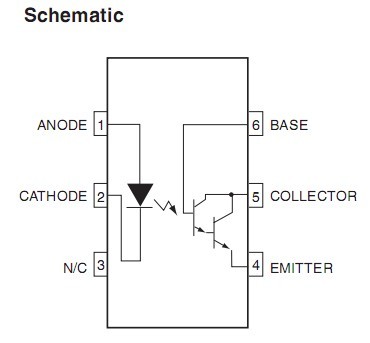

Diagrams
